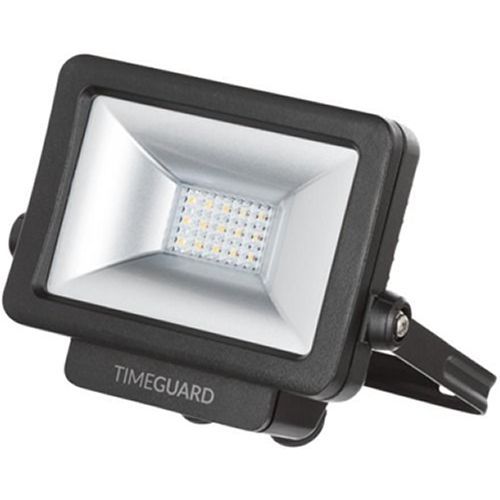

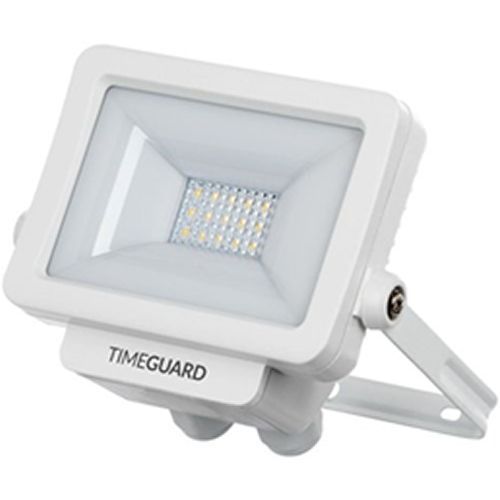

Timeguard 10W LED Professional Rewirable Floodlight

General

Operating Voltage

230v AC

Frequency

50Hz

Installation Type

Surface Mount

Class Rating

Class I

Lamp Wattage

10W LED Non replaceable lamp

Energy Usage

10kWh/1000h

Energy Efficiency

Class A

Output

650lm typical

Colour Temperature

5000K

Lamp Tilt Adjustment

360°

Accessories (Included)

Instructions, Fittings, U Bracket, M20 Glands

Accessories (Optional)

LEDPROPCB Plug & Play Photocell

LEDPROSLB Plug & Play PIR Sensor

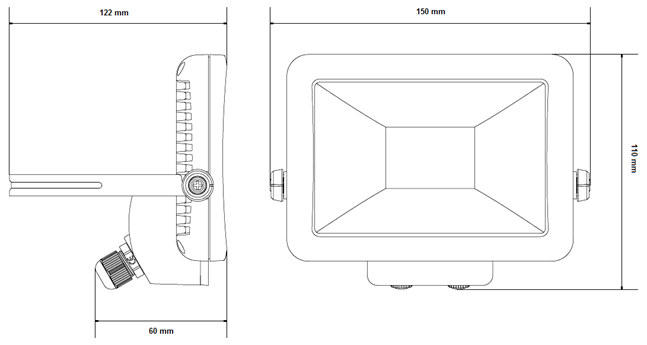

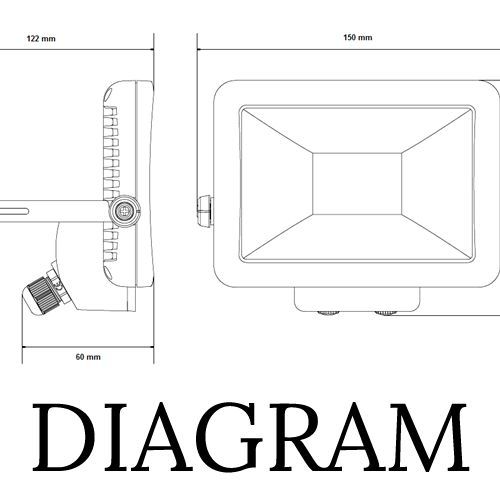

Dimensions

Height 110mm, Width 150mm, Depth 60mm

Mounting Centres

98mm

IP Rating

IP65

Weight

353g

EAN

5012483013731

Designed In Accordance To

BS EN 62493:2010, BS EN60598-2-1, BS EN 61347-2-13

Includes updates and amendments.

Guarantee Period

3 Years

Construction

Body

Polycarbonate

Bracket

Painted Aluminium
