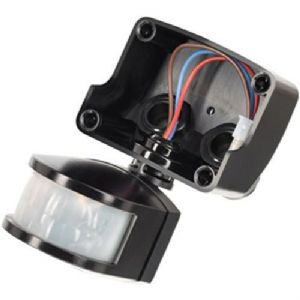

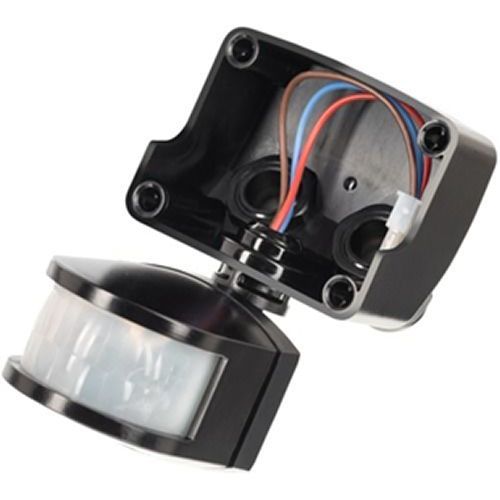

Timeguard Dedicated PIR Detector for LEDPRO Floodlights

General

Operating Voltage

230V AC

Frequency

50Hz

Class Protection

Class I

Weatherproof Rating

IP55

Switch Rating

1000W Halogen, 200W Fluorescent tube w/o PF correction & CFL, 140W LED lighting

Warm Up Period

35 Seconds

Accessories (Included)

Instructions, Fittings

Compatible with Timeguard Floodlight Models

LEDPRO10B, LEDPRO10WH, LEDPRO20B, LEDPRO20WH, LEDPRO30B, LEDPRO30WH, LEDPRO50B, LEDPRO50WH, LEDPRO70B, LEDPRO70WH, LEDPRO100B, LEDPRO100WH

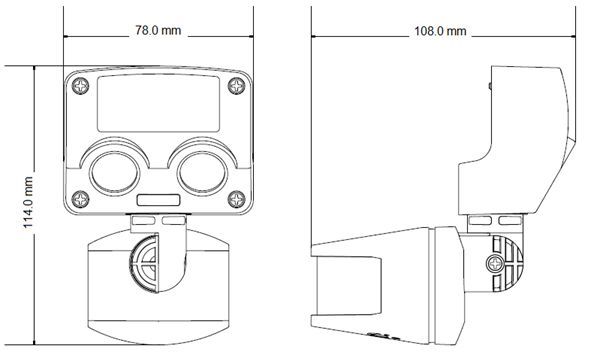

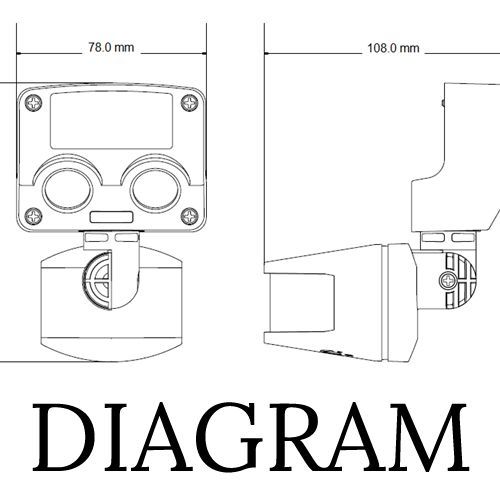

Dimensions

Height 114mm, Width 78mm, Depth 108mm

Weight

124g

EAN

5012483013779

Designed In Accordance To

BS EN 60669-2-1

Includes updates & amendments.

Guarantee Period

3 Years

PIR Sensor

Detection Angle

180°

Sensor Head Adjustment

Pan angle = Left/right 90°, Tilt angle = Down 150°

Light ON Time Adjustment

3 seconds to 18 minutes

Detection Range

Up to12m distance at a 2.5m mounting height

Permanent ON Facility

Pulse internal switch once (OFF/ON) within 1.5 seconds for 6 hours ON time.

Construction;

PIR

Polycarbonate
