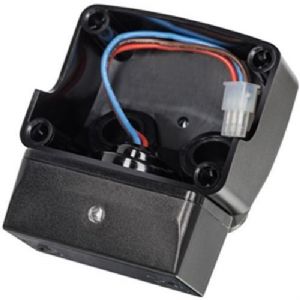

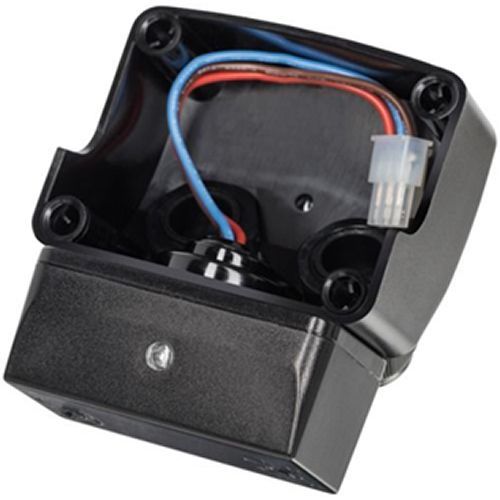

Timeguard Dedicated Photocell for LEDPRO Floodlights

General

Operating Voltage

230V AC

Frequency

50Hz

Class Protection

Class I

Weatherproof Rating

IP55

Operating Temperature

-20°C to +40°C

Switch Rating

1000W Halogen, 200W Fluorescent tube w/o PF correction & CFL, 140W LED lighting

Accessories (Included)

Instructions, Fittings

Compatible with Timeguard Floodlight Models

LEDPRO10B, LEDPRO10WH, LEDPRO20B, LEDPRO20WH, LEDPRO30B, LEDPRO30WH, LEDPRO50B, LEDPRO50WH, LEDPRO70B, LEDPRO70WH, LEDPRO100B, LEDPRO100WH

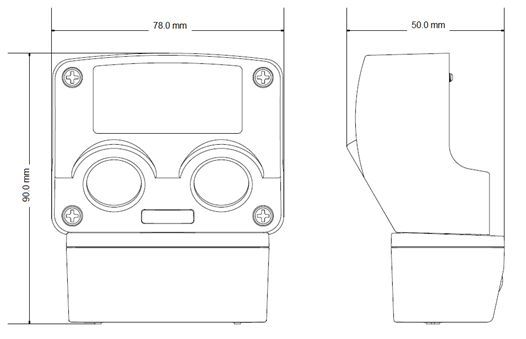

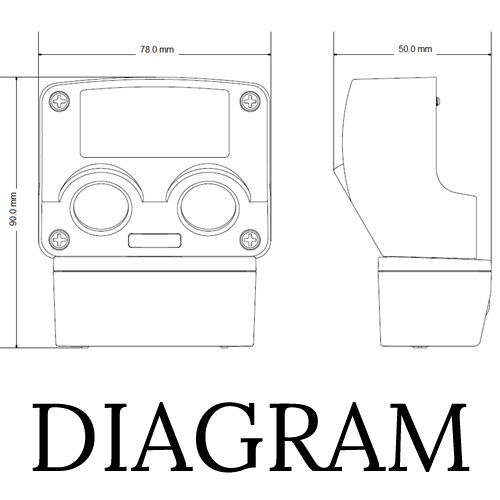

Dimensions

Height 91mm, Width 78mm, Depth 53mm

Weight

95g

EAN

5012483013786

Designed In Accordance To

BS EN 60669-2-1

Includes updates & amendments.

Guarantee Period

3 Years

Photocell

Light ON Time Adjustment

2, 4, 6, 8 hours or Dusk to Dawn

Lux Level Adjustment

Day and night or night time only

Construction;

Photocell

Polycarbonate
